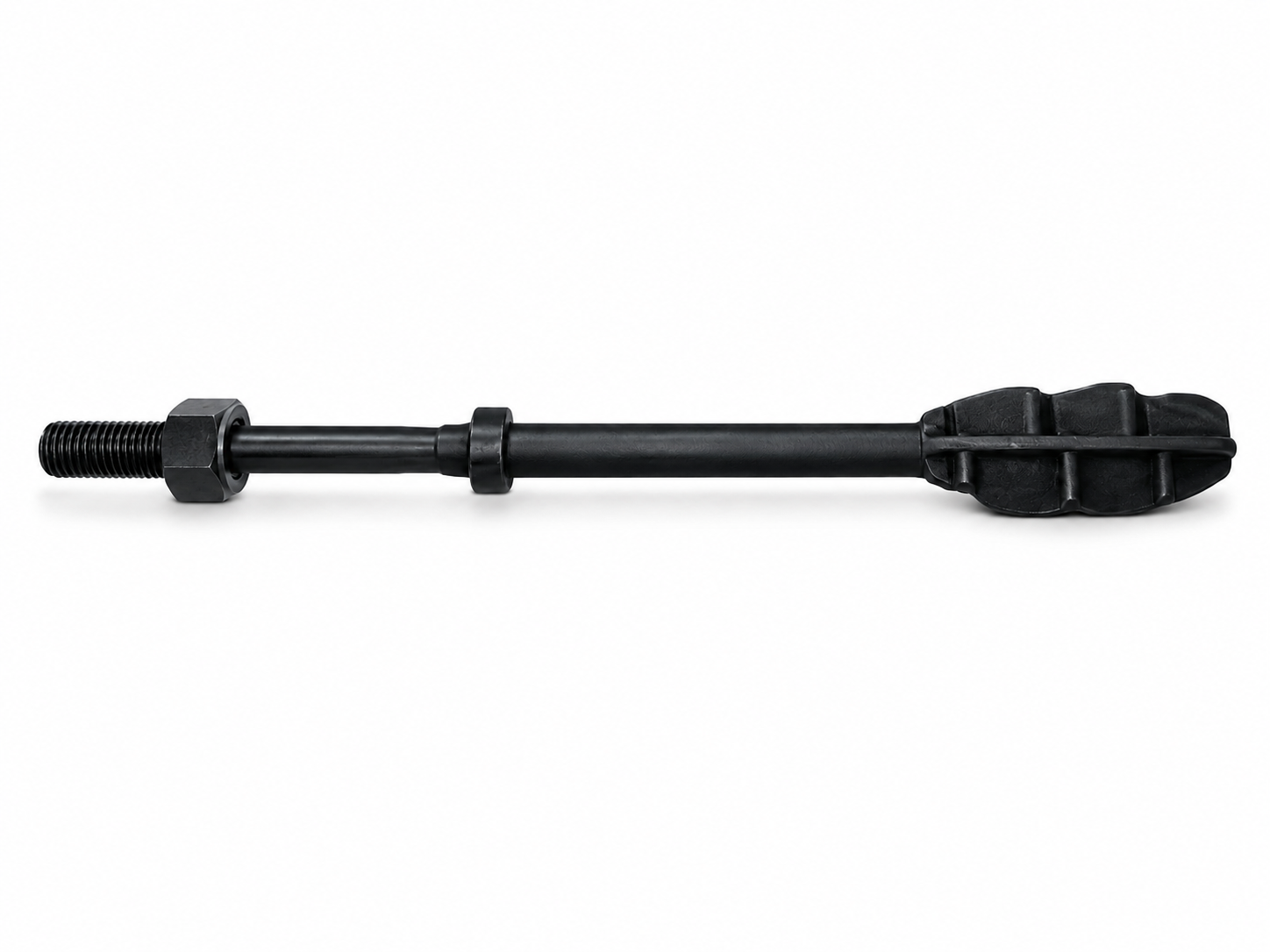

Anchor Bolt
AMT Anchor bolts are designed for use with the AMT leveller series. This type of anchor bolt is used to secure industrial machinery to the floor or foundations, ensuring stability and precise levelling.
N/A

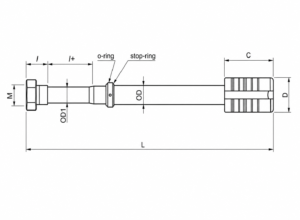

| Description | UOM | ANB-M20 | ANB-M24 |
|---|---|---|---|
| Stud Size (M) | mm | M20 | M24 |
| L | mm | 400 | 500 |
| D | mm | 43 | 50 |
| C | mm | 85 | 125 |
| l | mm | 50 | 65 |
| l+ | mm | 90 | 100 |
| ØD | mm | 19 | 24 |
| ØD1 | N* | 16 | 19 |
| Stop Ring | mm | 30 × 20.5 × 12 | 35 × 24.5 × 14 |
| O-Ring | mm | 20 × 5 | 24 × 5 |
| Maximum Force | kN | 81 | 115 |
