AMT MACHINE LEVELLER, SERIES MF
AMT MF series machine leveller is a one-stop solution for precise yet cost-efficient installation of heavy machinery and equipment. They are available in two basic designs: bolt-through and bolt-on. The “bolt-through” design has a clearance hole for an anchor bolt to securely anchor machines to the floor or foundation. The “bolt-on” design comes with fasteners and is designed for free-standing installations. MF series machine leveller is based on the double-wedge principle. Both wedges move towards or away from the loading centre symmetrically. Equalizing these forces around the centre results in an absolutely rigid and stable anchoring system. As there is equal load distribution through two lifting wedges, the force required to raise or lower a machine is reduced considerably, resulting in effortless and precision levelling.
Application
- Heavy machine tools for processing crankshafts and camshafts or rollers
- Boring machines, gear-testing machines, horizontal and critical machining centres
- Surface-grinding and laser-cutting machines
- Die-casting and plastic-injection-moulding machines
- Punching and press machines
- Turbines and compressors
- Printing machines

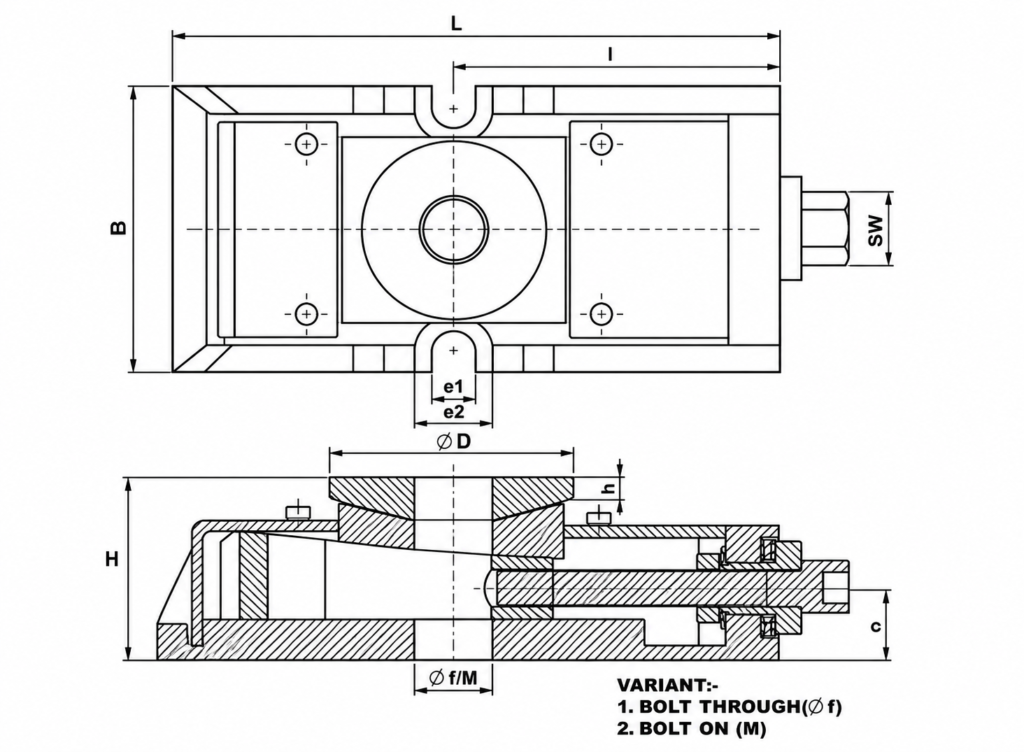

| Description | UOM | AMT-MF1 | AMT-MF2 | AMT-MF3 |
|---|---|---|---|---|
| Maximum load per mount | kg | 2,000 | 4,000 | 5,500 |
| Length × Width × Height (L × B × H) | mm | 180 × 120 × 75 | 220 × 145 × 95 | 270 × 180 × 110 |
| Height adjustment (h) | mm | 5 | 6 | 7 |
| Bolt-through size (Øf) | mm | 24 | 28 | 37 |
| Bolt-on size (M) | mm | M20 | M24 | M30 |
| Adjustment-screw hex head (SW) | mm | 22 | 27 | 27 |
| Resting diameter (D) | mm | 75 | 92 | 113 |
| c | mm | 32 | 34 | 43 |
| l | mm | 95 | 122 | 145 |
| e1 | mm | 14 | 18 | 22 |
| e2 | mm | 26 | 32 | 39 |

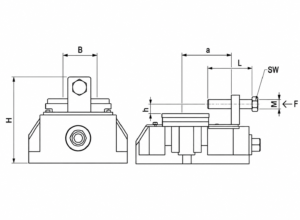

Lateral Adjuster for Adjusting Machine Location
| Description | UOM | MF-1 | MF-2 | MF-3 |
|---|---|---|---|---|
| Stud size (M) | mm | M16 × 1.5 | M16 × 1.5 | M20 × 1.5 |
| L | mm | 60 | 80 | 100 |
| SW | mm | 24 | 24 | 30 |
| H | mm | 102 | 122 | 150 |
| B | mm | 30 | 30 | 40 |
| a | mm | 67 | 90 | 105 |
| h | mm | 12 | 12 | 20 |
| Force (F) | N | 25 | 30 | 40 |
Advantages
- Precise and accurate machine positioning and levelling
- Considerable reduction in machine-maintenance cost.
- Machine accuracy maintained for a longer duration
- Reduced installation time thanks to effortless and precise levelling
- No horizontal machine movement
- No special foundation required
- Sufficient adjustment height
