AMT MACHINE MOUNT, SERIES MM
AMT MM series machine mounts are well suited for mounting workshop machinery without being anchored to the ground, especially for machines with high vertical and horizontal forces. These ready-to-install mounts allow immediate commissioning, eliminating the need for foundations or grouting. The height adjustment feature allows precise levelling of machinery. These mounts will insulate high-frequency vibrations and sound and prevent wandering of machinery due to the large contact area. Also, the anti-vibration material used has high resistance to acids, alkalis and oils.
Application
- General-purpose machine mounts
- Machine tool industry
- Plastic industry
- Sheet metal industry
- Food industry
- Beverage industry
- Pharmaceutical industry

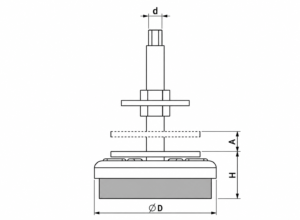

| Description | UOM | AMT-MM1 | AMT-MM2 | AMT-MM3 | AMT-MM4 |
|---|---|---|---|---|---|
| Diameter (D) | mm | 80 | 120 | 160 | 200 |
| Height (H) | mm | 45 | 45 | 60 | 67 |
| Stud Size (d) | mm | M12 × 1.5 × 100 | M16 × 1.5 × 100 | M20 × 1.5 × 150 | M20 × 1.5 × 150 |
| Adjustment (A) | mm | 10 | 15 | 21 | 21 |
| Min./Max. Load per mount | kg | 50–500 | 200–1100 | 800–2100 | 1500–4000 |
Advantages
- Quick and easy installation. No need for anchoring.
- Isolate strong vibrations that are dangerous both for the operator and machinery. Achieve a higher workplace quality.
- PReduce maintenance and repair costs, as premature wear of machinery is avoided.
- Good resistance to machine coolants and oils.
