AMT MACHINE MOUNT, SERIES ML
The AMT ML series levelling mounts are well equipped for many applications. These economical mounts provide fast, easy and precise levelling. The unique design of the connecting leveller and levelling stud can automatically compensate for ground unevenness of up to 4°. The anchor-free setup and simple levelling with a wide levelling range guarantee maximum flexibility for your machinery.
Application
- Drilling, milling and lathe machines
- Production conveyors
- Packaging filling machines
- Automated assembly equipment
- Material-handling equipment
- Electrical equipment and displays
- Equipment benches
- Woodworking machines

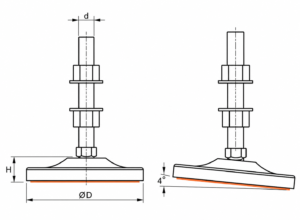

| Description | UOM | AMT-ML1 | AMT-ML2 | AMT-ML3 |
|---|---|---|---|---|
| Diameter (D) | mm | 85 | 135 | 175 |
| Height (H) | mm | 19.5 | 25 | 26 |
| Stud Size (d) | mm | M12 × 1.75 × 100 | M16 × 1.5 × 120 | M20 × 1.5 × 150 |
| Maximum Load per mount | kg | 650 | 1650 | 3000 |
Advantages
- Fast, easy and economical levelling can be achieved.
- Good for compensating for floor unevenness.
- High durability..
