AMT CUSHY FOOT MOUNT, SERIES C
AMT C Series Cushy Foot Mounts employ the well-proven inclined rubber element design to achieve much higher deflections compared to simple rubber-in-compression devices and, therefore, provide superior isolation of low-frequency vibration. These mounts consist of two rubber sandwich pieces housed in specially designed, robust iron castings. The mountings are protected against oil and physical and mechanical damage. AMT Cushy Foot Mounts provide insulation against transverse, vertical and longitudinal stiffness and reduce the transmission of vibration, structure-borne noise and shock from a wide range of rotating and reciprocating machinery. These mounts have very low natural frequencies and possess good lateral stability.
Application
- Diesel generating sets
- Engine test beds
- Lift motor gear
- Chillers and cooling towers
- Large fans and AHUs
- Pumps and compressors
- Paper and printing machines
- Food-processing machines
- Blowers

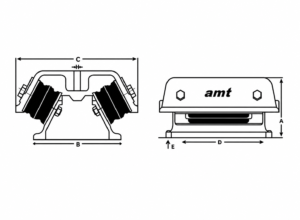

| Product Code | Maximum Load per Mount | A | B | C | D | E | H |
|---|---|---|---|---|---|---|---|
| AMT-C-A1 | 100 kg | 75 mm | 82 mm | 132 mm | 90 mm | 12.5 mm | M12 |
| AMT-C-A2 | 160 kg | 75 mm | 82 mm | 132 mm | 90 mm | 12.5 mm | M12 |
| AMT-C-A3 | 250 kg | 75 mm | 82 mm | 132 mm | 90 mm | 12.5 mm | M12 |
| AMT-C-B1 | 400 kg | 105 mm | 145 mm | 205 mm | 160 mm | 18 mm | M16 |
| AMT-C-B2 | 800 kg | 105 mm | 145 mm | 205 mm | 160 mm | 18 mm | M16 |
| AMT-C-B3 | 1,200 kg | 105 mm | 145 mm | 205 mm | 160 mm | 18 mm | M16 |
| AMT-C-B4 | 1,600 kg | 105 mm | 145 mm | 205 mm | 160 mm | 18 mm | M16 |
Advantages
- Rubber-to-metal bonded rectangular elements are inclined to achieve maximum load and deflection using a combination of compression and shear loading.
- High-strength cast-iron castings.
- Rubber sandwich elements are effectively protected by the top casting and its extended skirt.
- Two different horizontal stiffness axes enable optimum system characteristics and vibration isolation through careful orientation of the mounting.
