AMT MACHINE LEVELLER, SERIES MU
AMT machine leveller, Series MU, is a one-stop solution for the precise yet cost-efficient installation of heavy machinery and equipment. A key design element is the central slot, which allows for installation after grouting bolts are secured to the foundation. A large supporting surface and high levelling adjustment are available. As there is equal load distribution through two lifting wedges, the force required to raise or lower a machine is reduced considerably, resulting in effortless and precision levelling.
Application
- Heavy machine tools for processing crankshafts and camshafts or rollers
- Boring machines, gear-testing machines, horizontal and critical machining centres
- Surface-grinding and laser-cutting machines
- Die-casting and plastic-injection-moulding machines
- Punching and press machines
- Turbines and compressors
- Printing machines

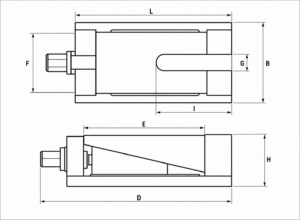

| Description | UOM | AMT-MU1 |
|---|---|---|
| Maximum load per mount | kg | 7,800 |
| U-slot size | mm | M24 |
| Length × Width × Height (L × B × H) | mm | 209 × 145 × 86 |
| Adjustment stroke | mm | 11 |
| Resting dimension (E × F) | mm | 145 × 112 |
| Slot diameter (G) | mm | 25 |
| Slot length (l) | mm | 102 |
| Overall length (D) | mm | 246 |
Advantages
- Offers high accuracy
- Reduces installation work cost.
- Can be fixed using an anchor bolt
- Offers the best rigidity
- Easy installation
- Most suitable for installing machines such as milling machines, radial drilling machines, planers and surface plates
