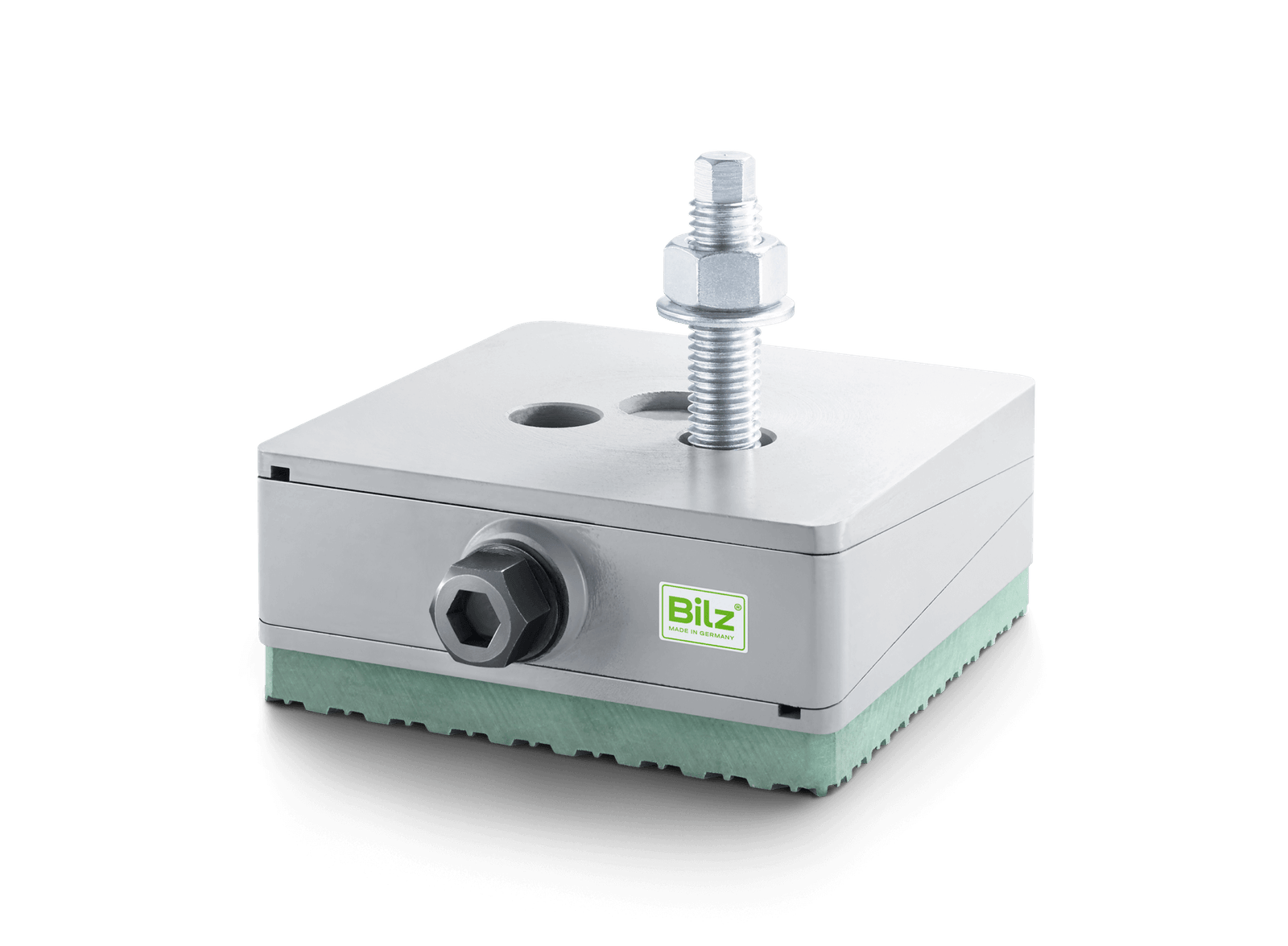

Precision levelling wedges Series PKA

For machines with a large thrust force that require a firm connection to the machine bed.
Description series PKA
  • Bolt-on Bilz precision levelling wedge PKA are used for machines with large thrust forces that require a solid connection to the machine bed, e.g. injection moulding machines, impact machines, cold extrusion presses, etc.
  • The bolt-on machine feet remain in position even when the machine is lifted, significantly easing the installation of the machine.
  • Please contact us if the appropriate isolation pad configuration for your application is not listed. We are also able to develop a wide range of special solutions. We are always happy to offer our advice.
Send Enquiry
Download Catalogue
Note
  • The specified maximum load is composed of static and dynamic loading of the machine.
  • The best insulation effect is achieved at approximately 80-90 % of the specified maximum load.
  • Permissible temperature range: -20 °C to +80 °C
  • Colour: RAL 7037, dusty grey
  • The type of insulation pads used can be found in the type designation, for example PKA 3-0 is equipped with pad B0.
  • Please contact us if the size, insulation pad mounting or bolt size that you are looking for is not listed. In addition to our standard solutions and colours we also carry numerous special solutions. We are always happy to give advice.
Width across flats
TypinnenaußenTypinnenaußen
PK 1WAF 6WAF 13PKA / PKD 1WAF 10WAF 19
PK 2WAF 10WAF 19PKA / PKD 2WAF 12WAF 22
PK 2.5WAF 10WAF 19PKA / PKD 3WAF 14WAF 27
PK 3WAF 12WAF 22PKA / PKD 4WAF 14WAF 27
PK 3.2WAF 12WAF 22PKA / PKD 5WAF 14WAF 27
PK 3.5WAF 12WAF 22PKA / PKD 6WAF 17WAF 32
PK 3.8WAF 12WAF 22PKA / PKD 7WAF 19WAF 41
PK 4WAF 14WAF 27PKA / PKD 8WAF 22WAF 50
PK 4.5WAF 12WAF 27
PK 5WAF 14WAF 27
PK 5.5WAF 14WAF 27
PK 6WAF 14WAF 27
PK 7WAF 17WAF 32
PK 8WAF 19WAF 41
PK 9WAF 22WAF 50


PKA B0-mounting

Bottom face with insulation pad B0: Lathes, boring mills, grinding machines and machining centres.

Type selection

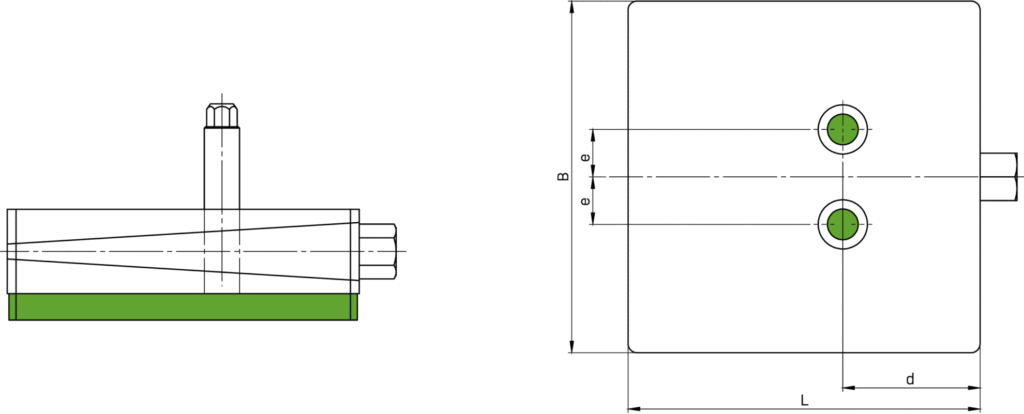

Type PKA B0 mountingitem no.max. load N/pc.L mmB mmH center position mmd mme mmInternal threadAdjustment range mm
PKA 1-003-000725.000115115605024M16+3/-3
PKA 2-003-001043.000150150615823M18+4/-4
PKA 3-003-002477.000200200637627M20+4/-6
PKA 3/72-003-002077.000200200877627M20+4/-7
PKA 4-003-002897.000200250879527M20+10/-7
PKA 5-003-0033161.00025033087125105M24+6/-10
PKA 6-003-0037236.0003004008815095M24+8/-12
PKA 7-003-0040393.00040050088200130M24+8/-14
PKA 8-003-0043591.000500600130255150M30×2+12/-15

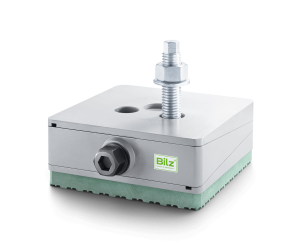

PKA B4-mounting

Bottom face with insulation pad B4:Plastic injection moulding machines, die casting machines, plaining and slotting machines, cold extrusion machines, etc. Extreme slip resistance.

Type selection
Type PKA B4 mountingitem no.max. load N/pc.L mmB mmH center position mmd mme mmInternal threadAdjustment range mm
PKA 1-403-000812.000115115605024M16+3/-3
PKA 2-403-001120.000150150615823M18+4/-4
PKA 3-403-002538.000200200637627M20+4/-6
PKA 3/72-403-002138.000200200877627M20+4/-7
PKA 4-403-003048.000200250879527M20+10/-7
PKA 5-403-003480.00025033087125105M24+6/-10
PKA 6-403-0038117.5003004008815095M24+8/-12
PKA 7-403-0041195.50040050088200130M24+8/-14
PKA 8-403-0044294.500500600130255150M30×2+12/-15

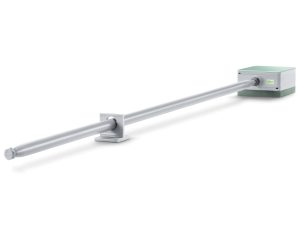

Extension for levelling wedge bolt
  • If the levelling bolt is difficult to access, we recommend using the levelling bolt extension. This ensures quick and easy levelling even when space is limited. These levelling aids are available in different lengths and wrench widths depending on the levelling wedge shoe used. Please contact us for further details.

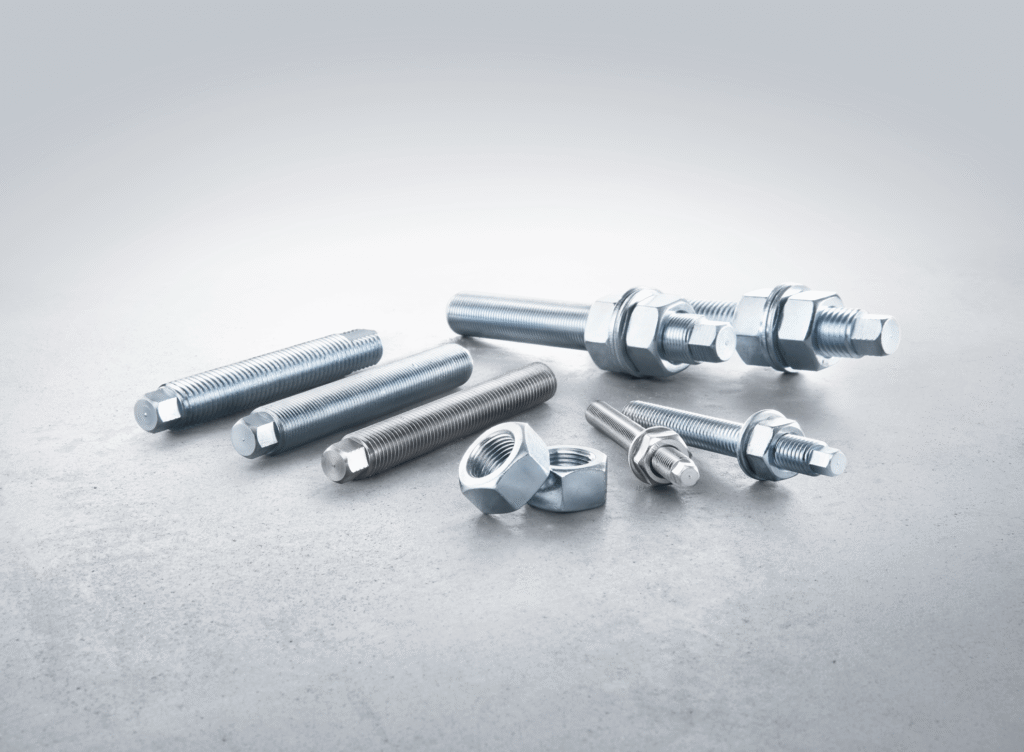

PKA fixing bolts
  • Suitable bolts and nuts with standard thread can be supplied on request. Delivery includes 1 nut and 1 washer.
Item numbers PKA fixing bolts
ThreadMaterialLength 100 mmLength 125 mmLength 150 mmLength 200 mm
M16galvanised19-032319-0324––
M16stainless steel18-008318-0080––
M18galvanised19-032519-035719-0441–
M18stainless steel18-0084–––
M20galvanised19-0326–19-032719-0308
M20stainless steel18-0085–18-0081–
M24galvanised19-0329
M24stainless steel18-0082
M30×2galvanised19-024219-0245

PHARMACEUTICALS/MEDICAL TECHNOLOGY

BILZ MACHINE FEET IN SUCCESSFUL USE FOR 15 YEARS

BD Rowa™: customised solution for automatic order pickers

Customer

BD Rowa™

Key Facts

  • High damping ratio up to30%
  • Operating temperature:-20°C to +80°C
  • Successfully used for15+ years

Background

BD Rowa™ is a leading German manufacturer of automated pharmacy storage and order-picking systems. With over 11,000 installations in 55 countries, the company has trusted Bilz solutions for many years.

Challenge

The customer required adjustable machine feet with excellent vibration isolation to ensure long-term stability, precision, and noise reduction in automated order-picking systems.

Solution

Bilz developed custom machine feet with integrated isolation plates, providing outstanding vibration damping, easy installation, and reliable long-term performance under both static and dynamic loads.

Results

  • Reduced vibration and structure-borne noise
  • Improved machine precision and stability
  • Enhanced protection for equipment and operators
  • Proven reliable for15+ years

Highlight

Bilz vibration isolation solutions have been successfully used in BD Rowa™ automated order pickers since 2007.
