Horizontal elements
For machines with high horizontal forces or for lateral linking and fixing.
Description

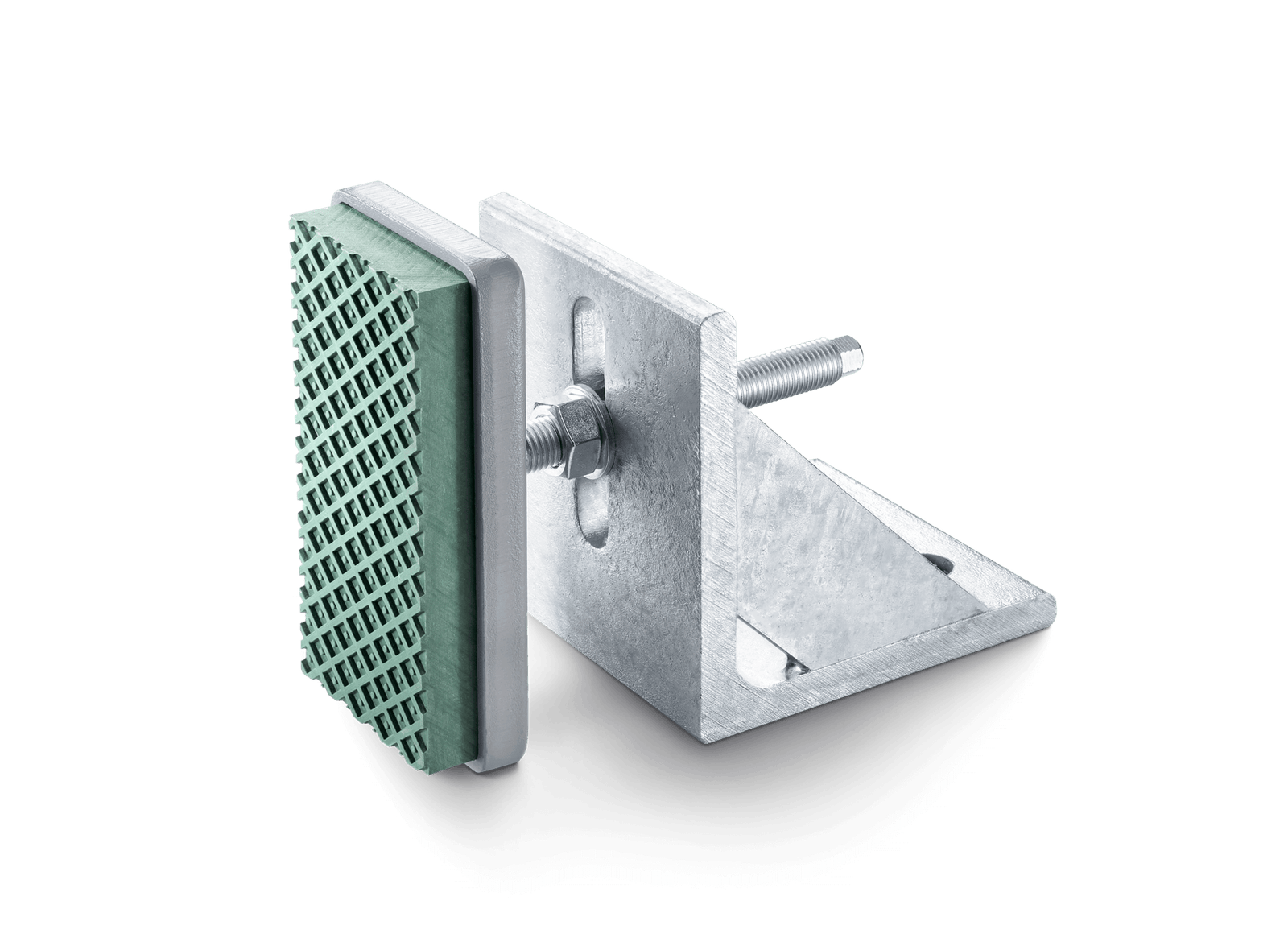

Bilz Horizontal elements are used on machines with a very high horizontal force, or when machines are interlinked and have to be affixed horizontally. Bilz leveling elements from the BNV series are used as pressure plates guaranteeing isolation from vibration. Bilz Horizontal Elements are available in 2 sizes with 16,500 N pressure absorption.

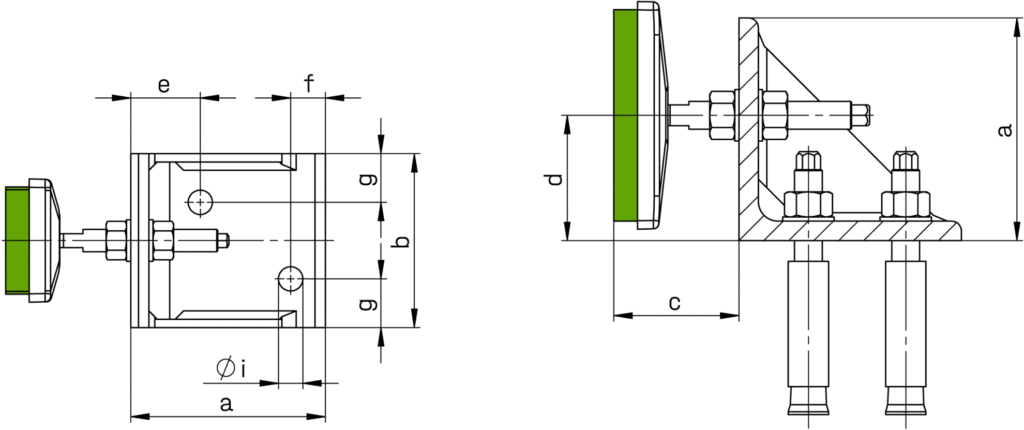

Technical data and variants
Size 1
| Type | Item no. | max. load N/pc. | a mm | b mm | c mm | d mm | e mm | f mm | g mm | i mm |
|---|---|---|---|---|---|---|---|---|---|---|
| Size 1 | 20-0066 | 16.500 | 140 | 125 | 75-95 | 45-115 | 50 | 25 | 35 | 18 |
Steel angle, levelling element type BNVS 115/5, 3 bolts M16 x 150, 2 anchors M16
Size 2
| Type | Item no. | max. load N/pc. | a mm | b mm | c mm | d mm | e mm | f mm | g mm | i mm |
|---|---|---|---|---|---|---|---|---|---|---|
| Size 2 | 20-0067 | 16.500 | 160 | 180 | 75-95 | 46-130 | 50 | 40 | 35 | 22 |
Steel angle, levelling element type BNVS 115/5, 4 bolts M20 x 150, 3 anchors M20
