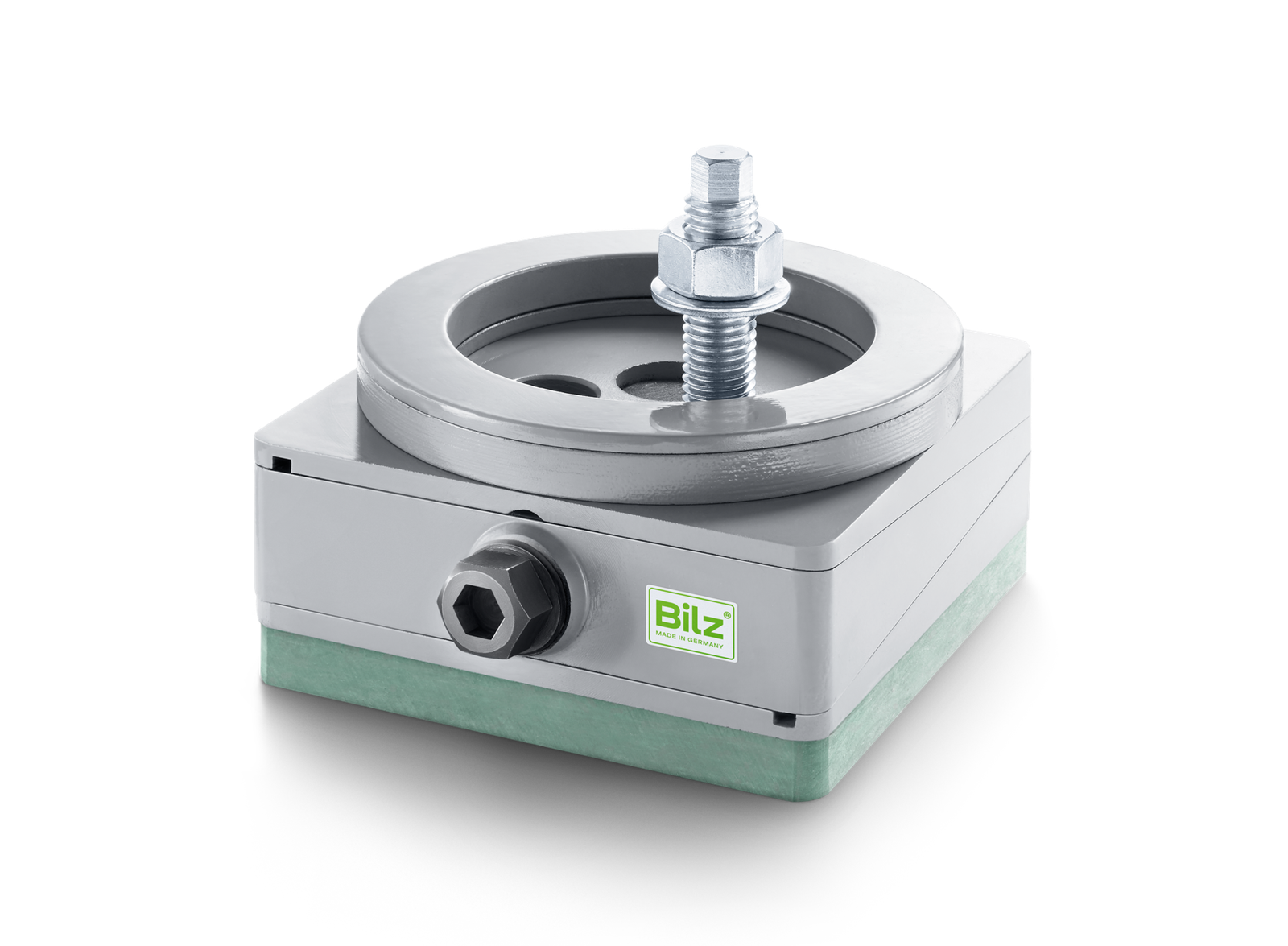

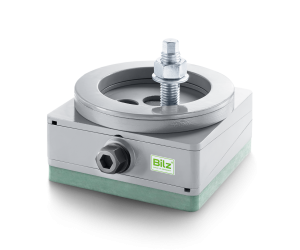

Precision levelling wedges Series PKDK
Can be anchored to the floor and used to compensate for angle differences, especially for machines with high geometric requirements.
Description series PKDK
- Bilz precision levelling wedges PKDK with spherical seat for compensating angle differences between machines and foundation or uneven floors.
- Especially for machines with a long bed and high geometric requirements.
- Please contact us if the appropriate isolation pad configuration for your application is not listed. We are also able to develop a wide range of special solutions. We are always happy to offer our advice.
Note
- The type of insulation pads used can be found in the type designation, for example PKDK 3-0 is equipped with pad B0.
- The specified maximum load is composed of static and dynamic loading of the machine. The best insulation effect is achieved at approximately 80-90 % of the specified maximum load.
- Permissible temperature range: -20 °C to +80 °C
- Colour: RAL 7037, dusty grey
- Please contact us if the size, insulation pad mounting or bolt size that you are looking for is not listed. In addition to our standard solutions and colours we also carry numerous special solutions. We are always happy to give advice.
Learn More →
Width across flats
| Type | inner | outer |
|---|---|---|
| PKA / PKD 1 | WAF 10 | WAF 19 |
| PKA / PKD 2 | WAF 12 | WAF 22 |
| PKA / PKD 3 | WAF 14 | WAF 27 |
| PKA / PKD 4 | WAF 14 | WAF 27 |
| PKA / PKD 5 | WAF 14 | WAF 27 |
| PKA / PKD 6 | WAF 17 | WAF 32 |
| PKA / PKD 7 | WAF 19 | WAF 41 |
| PKA / PKD 8 | WAF 22 | WAF 50 |
PPKDK – B0-mounting
Bottom face with insulation pad B0: Lathes, boring mills, grinding machines and machining centres.
Learn More →
Type selection

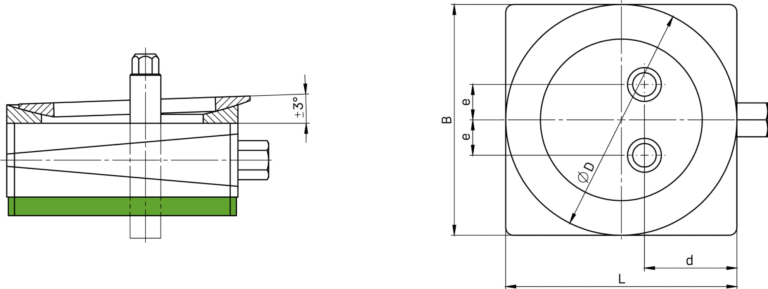

| Type PKDK B0 mounting | item no. | max. load N/pc. | L mm | B mm | H centre position mm | Ø D mm | d mm | e mm | Internal thread mm | Adjustment range mm |
|---|---|---|---|---|---|---|---|---|---|---|
| PKDK 1-0 | 06-0003 | 25.000 | 115 | 115 | 70 | 110 | 50 | 24 | 22 | +4/-5 |
| PKDK 2-0 | 06-0006 | 43.000 | 150 | 150 | 77 | 150 | 58 | 23 | 23 | +5/-6 |
| PKDK 3-0 | 06-0008 | 77.000 | 200 | 200 | 79 | 150 | 76 | 27 | 26 | +3/-7 |
| PKDK 4-0 | 06-0010 | 97.000 | 200 | 250 | 103 | 150 | 95 | 27 | 26 | +10/-7 |
Isolating disc for bolt head isolation
- Supply is inclusive of an appropriate insulating washer to insulate the bolt head.
PKD fixing bolts
- Suitable bolts and nuts with standard thread can be supplied on request. Delivery includes 1 nut and 1 washer.
Learn More →
Item numbers PKD bolts and nuts
| Thread | Material | 150 mm length | 200 mm length | 250 mm length | 300 mm length |
|---|---|---|---|---|---|
| M16 | galvanised | 19-0094 | 19-0098 | 19-0101 | |
| M16 | stainless steel | 18-0033 | 18-0036 | 18-0202 | |
| M18 | galvanised | 19-0136 | 19-0139 | 19-0142 | |
| M20 | galvanised | 19-0185 | 19-0188 | 19-0191 | |
| M20 | stainless steel | 18-0044 | 18-0047 | ||
| M24 | galvanised | 19-0214 | 19-0223 | 19-0226 | 19-0229 |
| M24 | stainless steel | 18-0052 | 18-0069 | 18-0203 | 18-0204 |
Anchors for floor anchoring
- Fischer heavy-duty anchor SL Fischer reaction anchor R and threaded rod RG Fischer anchor bolt FAZ Our product range includes Fischer anchors. Other types and manufacturers on request.
Extension for levelling wedge bolt
- If the levelling bolt is difficult to access, we recommend using the levelling bolt extension. This ensures quick and easy levelling even when space is limited. These levelling aids are available in different lengths and wrench widths depending on the levelling wedge shoe used.
