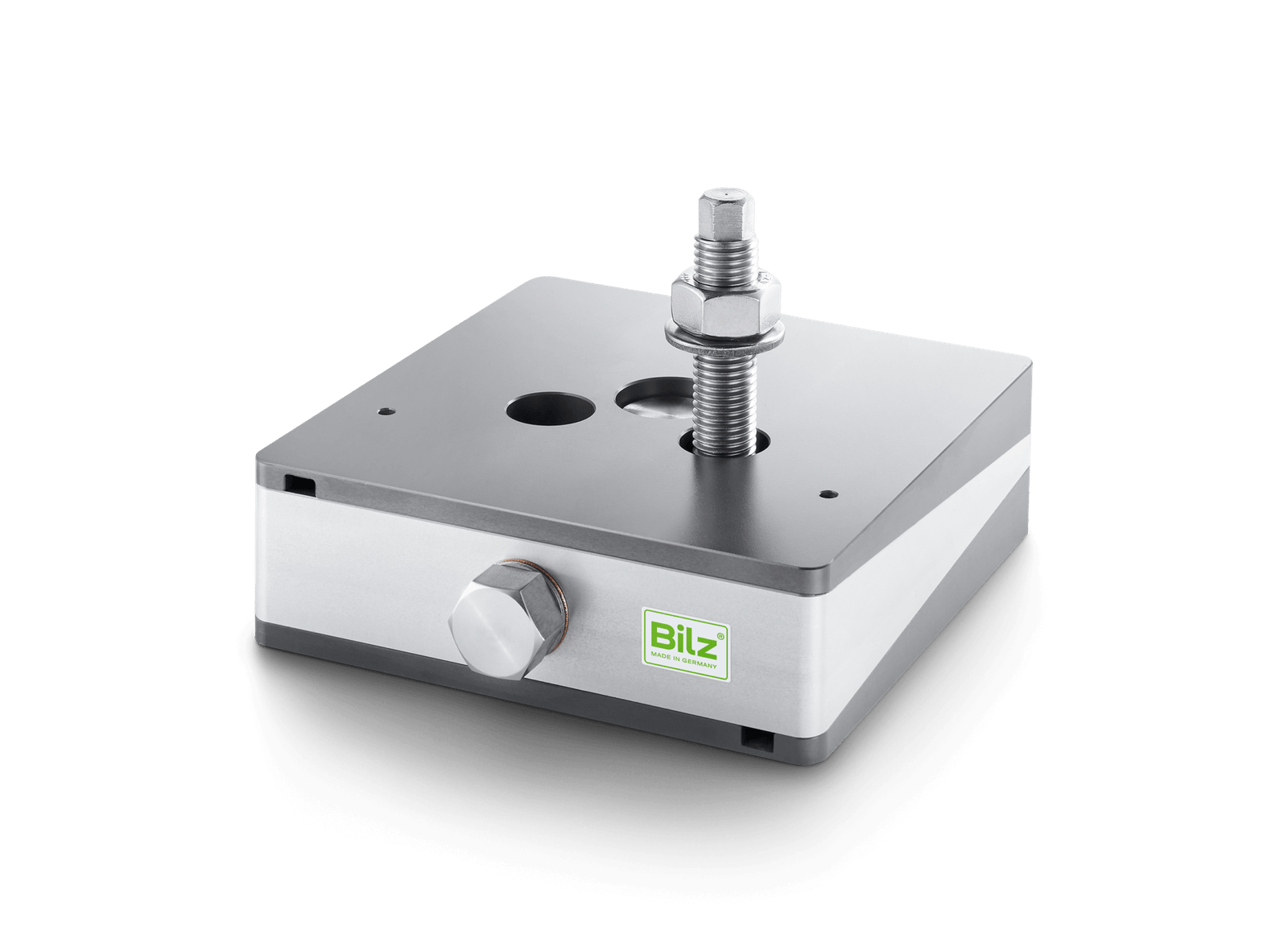

Precision levelling wedges Series PKD-AL

Easily adjustable levelling wedge with excellent wear properties, particularly suitable for EMC and clean room applications, can be anchored to the floor.

Description series PKA-AL

Bilz precision levelling wedges in aluminium version with hard anodising (hardcoat) are notable for their high layer density, hardness – up to 600 HV, and excellent wear protection properties.
The levelling wedge is very easy to adjust and particularly suitable for EMC applications.

Note

The specified maximum load is composed of static and dynamic loading of the machine.
Mounting with Bilz insulation pads is also possible (see drawing; also in EPDM or clean room applications).
General tolerances in accordance with ISO 2768 mK. Permissible temperature range: -20 °C to +80 °C
Natural colour dark grey
Please contact us if the size, insulation pad mounting or bold size that you are looking for is not listed. In addition to our standard solutions and colours we also carry numerous special solutions. We are always happy to give advice.

Learn More →

Width across flats

Type	outer
PKD 1-AL	WAF 19
PKD 2-AL	WAF 22
PKD 3-AL	WAF 27
PKD 4-AL	WAF 27

PKA-AL variants

Type	item no.	max. load N/pc.	L mm	B mm	H centre position mm	d mm	e mm	Internal thread mm	Adjustment range mm
PKD 1-AL	04-0020	19.000	115	115	44	50	24	22	+3/-3
PKD 2-AL	04-0021	32.000	150	150	47	60	24	22	+3/-5
PKD 3-AL	04-0022	57.000	200	200	53	80	27	26	+4/-5
PKD 4-AL	04-0023	72.000	200	250	73	95	27	26	+9/-5
