Series e-stable mini – active table platform

Excellent vibration isolation for lightweight table-top units, with active control in 6 degrees of freedom, load capacity 1,000 – 1,200 N

Description

The e-Stable mini active table platform features active control in 6 degrees of freedom, providing excellent vibration isolation for lightweight table-top units. Various diagrams can be displayed directly on an LCD monitor. The aluminium cover plate and the special housing means that the unit is suitable for use in clean rooms

Colour

Active control in 6 degrees of freedom provides excellent vibration isolation
Automatic levelling and locking at the touch of a button

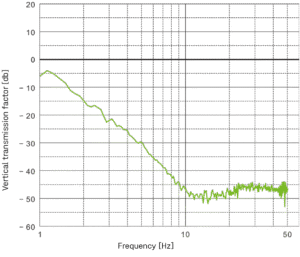

LCD monitor for displaying various diagrams, such as the acceleration spectrum
Suitable for clean rooms: Cover plate made from aluminium and clean room-suitable housing
No compressed air supply necessary
Power supply: 1-phase AC, 85-230 V, 50/60 Hz

Technical data overview

Technical data	e-stable mini 450F	e-stable mini 560F
Dimensions W×D×H	400 × 500 × 80 mm	500 × 600 × 84 mm
Max. load	120 kg	100 kg
Dead weight	19 kg	28 kg
Type of control	Voice coil actuators	Voice coil actuators
Clean room suitable	yes	yes
Item no.	56-0016	56-0047
